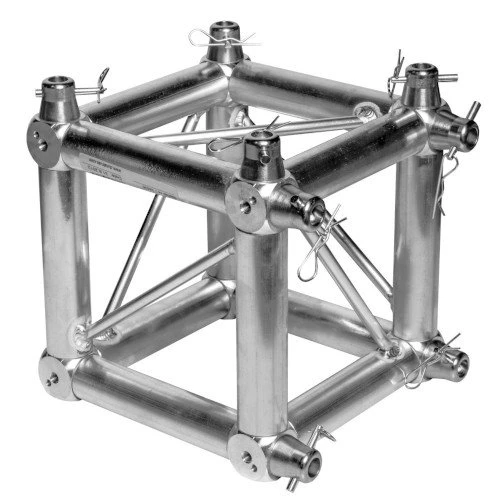

DT 24 – Box Corner
€381.03 incl. VAT (21%)
4 people are currently viewing this product
The DT24/2 System is a 4-point truss system that is connected with four conical connectors, bolts and locking pins.
This quick connector system closes force-lockingly with the belt tube and allows rapid construction during frequent assembly and dismantling. The four belt tubes are made of 35mm aluminum tube with 2mm wall thickness and give this system an excellent weight-load capacity ratio. Struts have a diameter of 8mm.
The system can optionally be expanded as required: corners, T-branches and angles are available. An extensive range of accessories such as hooks, connectors, floor plates, wall brackets, spacers and much more complete the product line.
The system is from European production which is compatible to the most common systems in the market
Available on backorder
Technical specs:
– Diametrics main tube: 35 mm (1.4 inch)
– Wall thickness: 2 mm (0,08 inch)
– Diametrics braces: 8 mm (0.3 inch)
– Material: Aluminium EN-AW 6060 T66 (AlMgSi1)
– Included in delivery: 8 half cones, 8 steel pins, 8 safety clips, 8 screws M8
– Length: 220 mm (without cone)
– Width: 220 mm
– Height: 220 mm
– Angle: 90°
– Weight: 3,5 kg
| Weight | 3.5 kg |
|---|
