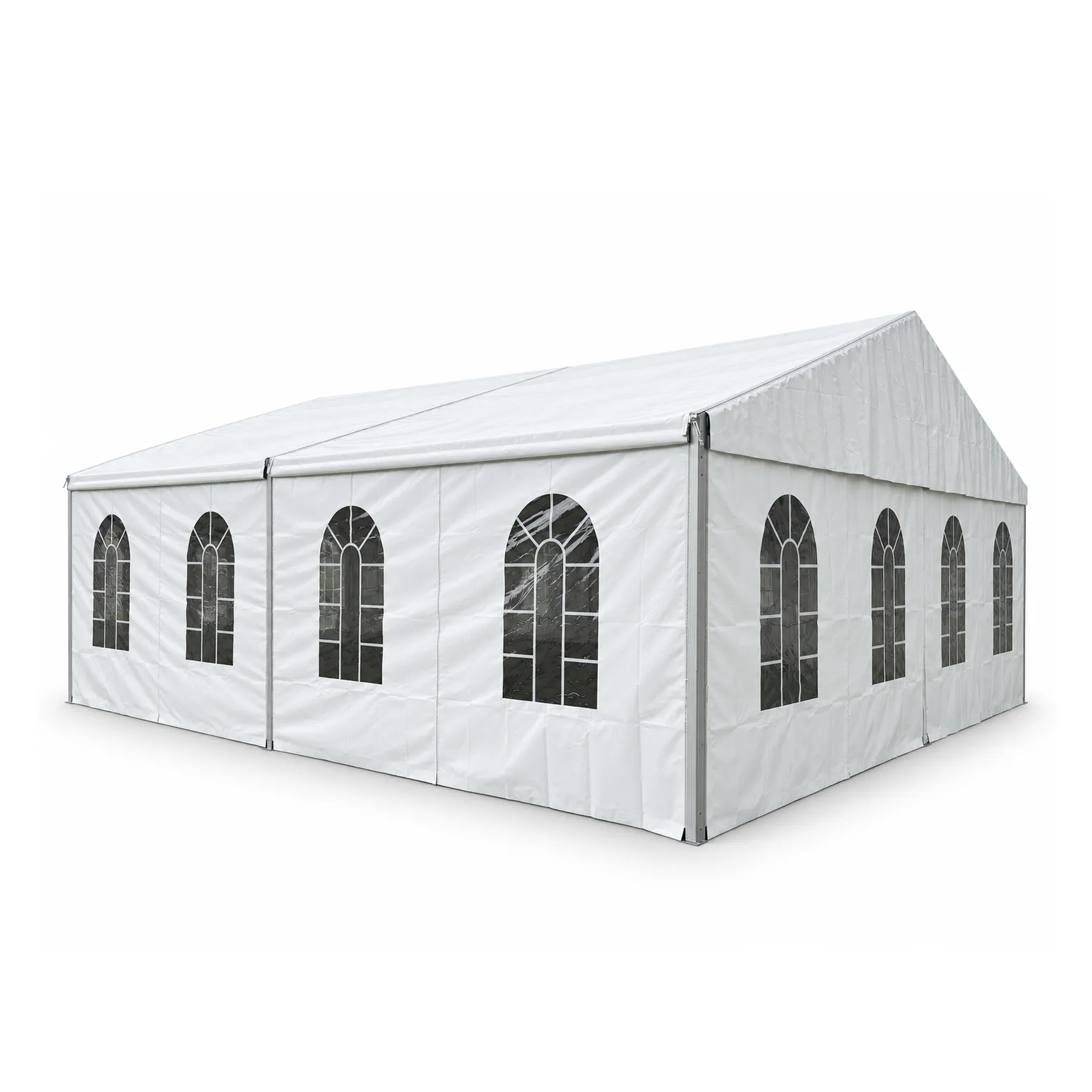

Modular 10 × 10 m tent – a structure designed for professional and repeated use, providing 100 m² of covered space. Thanks to its versatile modular design, the tent can be used not only for events but also for retail, exhibitions, temporary work areas, storage, or other purposes where a large, sheltered space is needed.

The tent structure is made of 6061-T6 aluminum profiles and steel connecting elements. The main profile measures 100 × 48 mm, and the section spacing of the structure is approximately 5 m. The side height is 2.5 m, and the ridge height is 4.1 m, thereby maintaining a spacious and comfortable interior.

The roof is covered with a durable 850 g/m² PVC tarpaulin. The covering is designed for intensive and repeated use.

PVC material is:

water-resistant;
UV-resistant;
mold- and rot-resistant;
resistant to environmental corrosion;
non-flammable, classified as M2/B1 by the manufacturer.

The coating is produced by applying a liquid PVC layer to a synthetic substrate. This manufacturing method helps produce a uniform, durable, and tensile-resistant material. Welded PVC joints are designed to withstand higher mechanical loads and intensive use.

The frame and connecting elements are made of galvanized steel, which helps protect the metal parts from oxidation and rust. The aluminum frame is also durable and corrosion-resistant.

According to the manufacturer, when properly assembled and secured, the structure can withstand wind speeds of up to 100 km/h, and the specified structural load is up to 0.5 kN/m². Actual resistance depends on the quality of assembly, the method of attachment to the foundation, and specific operating conditions.

Technical Specifications

Dimensions: 10 × 10 m
Total covered area: 100 m²
Side height: 2.5 m
Ridge height: 4.1 m
Section spacing: 5 m
Main profile: 100 × 48 mm
Frame material: 6061-T6 aluminum + steel components
Roof covering: 850 g/m² PVC tarp
Color: white
Maximum wind speed specified by the manufacturer: up to 100 km/h
Manufacturer-specified service life of the aluminum structure: more than 20 years
Manufacturer-specified service life of the PVC covering: up to 8 years

Application

A modular tent can be used for:

events and celebrations;
sales and fairs;
exhibitions;
as temporary warehouses;
work or service areas;
seasonal commercial spaces;
other temporary covered spaces.

The modular design allows for flexible adaptation of the tent to its intended use and the required configuration.

Additionally, we can perform the initial assembly of the tent along with training. The estimated time for a team of 4 people to assemble such a tent is approximately 3–5 hours, depending on their assembly experience and on-site conditions.
