DT 23/2 – 050cm
€132.72
4 žmonių šiuo metu žiūri šį produktą

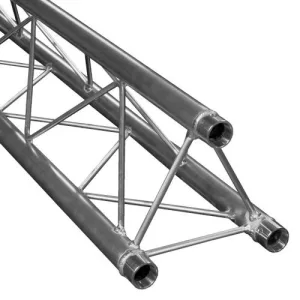

The DT23 series is a 3-point-trussing-system with conical coupler (spigot), trusspin and safety clip. This quick connector system closes force-lockingly with the belt tube and allows rapid construction during frequent assembly and dismantling. The three main tubes are made of 35mm aluminum tube with a wall thickness of 2mm and give this system an outstanding strength-to-weight ratio. The struts have a diameter of 8 mm. Each truss piece includes all necessary conical connectors, steel pins and safety clips.
The DT 23/2 system can be extended with various lengths, corners, T-branches and angles. Extensive accessories such as hooks, connectors, base plates and much more solutions complete the product line.
The system is from European production which is compatible to the most common systems in the market and is TÜV approved.
Išankstinis užsakymas
Populiarios Prekės
Technical specs:
– Diametrics main pipe: 35 mm (1.4 inch)
– Wall thickness: 2 mm (0,08 inch)
– Dimensions braces: 8 mm (0.3 inch)
– Material: Aluminium EN-AW 6060 T66 (AlMgSi1)
– Included in delivery: 3 cones, 6 steel pins, 6 safety clips
– Length: 500 mm (without cone)
– Width: 220 mm
– Height: 195 mm
– Weight: 1,4 kg
| Svoris | 1.4 kg |
|---|
