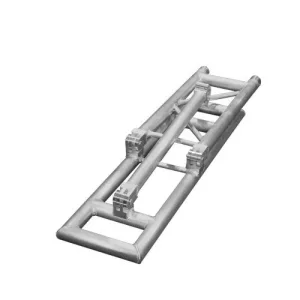

DT 32/2 – Folding Foot
€723.22 kaina su PVM
3 žmonių šiuo metu žiūri šį produktą
The DT32/2 series is a 2-point-trussing-system with conical coupler (spigot), trusspin and safety clip. This quick connector system closes force-lockingly with the belt tube and allows rapid construction during frequent assembly and dismantling. The main tubes are made of 50mm aluminum tube with a wall thickness of 2mm and give this system an outstanding strength-to-weight ratio. The struts have a diameter of 20 mm with a wall thickness of 2mm. Each truss length includes all necessary conical connectors, steel pins and safety clips.
Optionally the system can be extended with various lengths, corners, T-branches and angles. Extensive accessories such as hooks, connectors, floor plates, wall brackets, spacers and much more complete the product line.
The system is from European production which is compatible to the most common systems in the market
Išankstinis užsakymas
Technical specs:
– Diametrics main pipe: 50mm
– Wall thickness: 2 m
– Dimensions braces: 20 x 2 mm
– Material: Aluminium EN-AW 6082 T6 (AlMgSi1)
– Length: 1000 mm (without cone)
– Width: 290 mm
– Height: 805 mm
– Weight: 9,1 kg
Conical connectors, steel pins and safety’s most be ordered separately
| Svoris | 9.1 kg |
|---|
