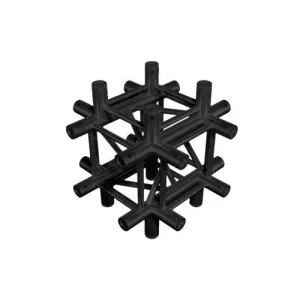

DT 34/3 – C61 Black
€844.22 kaina su PVM
3 žmonių šiuo metu žiūri šį produktą
The DT34/3 Black System is a matt black (RAL 9005) powdercoated 4-point truss system that is connected with conical connectors, bolts and locking pins. This quick connector system closes force-lockingly with the belt tube and allows rapid construction during frequent assembly and dismantling. The main tubes are made of 50mm aluminum tube with a wall thickness of 3mm and give this system an outstanding strength-to-weight ratio. The struts have a diameter of 20 mm with a wall thickness of 2mm. Each truss piece includes all necessary conical connectors, steel pins and safety clips.
The system can be extended with various lengths, corners, T-branches and angles. Extensive accessories such as hooks, connectors, floor plates, wall brackets, spacers and much more complete the product line.
The system is from European production which is compatible to the most common systems in the market.
Strengths of the truss system:
• High quality aluminum tubes with 50mm diameter
• Easy installation
• Low weight
• Space-saving transport
• For exhibition booth construction and event technology
Išankstinis užsakymas
Specifications:
• Main Tube: 50 x 3 mm
• Braces: 20 x 2mm
• Alloy: EN-AW 6082 T6 (AlMgSi1)
• Manufactured according DIN 4112, DIN 4113-1
• Coupling System: Concial connector with bolt and locking pin
Dimension and weight:
• Lenght: 500 mm (without connector)
• Width: 500 mm
• Height: 500 mm
• Weight: 9,4 kg
Delivery including connector set, consisting of: 20 conical connectors, 40 bolts and 40 locking pins.
| Svoris | 9.4 kg |
|---|
