DT 43/2 – T42 – DTD

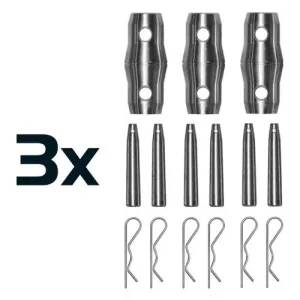

The DT43/2 System is a 3-point truss system that is connected with three conical connectors, bolts and locking pins.

This quick connector system closes force-lockingly with the belt tube and allows rapid construction during frequent assembly and dismantling. The three belt tubes are made of 50mm aluminum tube with 2mm wall thickness and give this system an excellent weight-load capacity ratio. The braces have a diameter of 25mm and a wall thickness of 3mm.

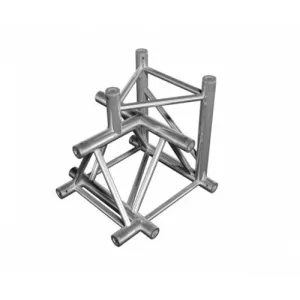

The system can optionally be expanded as required: corners, T-branches, angles and circles are available. An extensive range of accessories such as hooks, connectors, floor plates, wall brackets, spacers and much more complete the product line.

The system is from European production which is compatible to the most common systems in the market

Strengths of the truss system:

• High quality aluminum tubes with 50mm diameter
• Easy installation
• Low weight
• Space-saving transport
• For exhibition stand construction and event technology
