DT 44/4 – 050cm
€291.64 kaina su PVM
2 žmonių šiuo metu žiūri šį produktą
The DT44/4 System is a 4-point truss system that is connected with conical connectors, bolts and locking pins. This quick connector system closes force-lockingly with the belt tube and allows rapid construction during frequent assembly and dismantling. The main tubes are made of 50mm aluminum tube with a wall thickness of 4mm and give this system an outstanding strength-to-weight ratio. The struts have a diameter of 25 mm with a wall thickness of 3mm. Each truss piece includes all necessary conical connectors, steel pins and safety clips.
The system is from European production which is compatible to the most common systems in the market and is TÜV approved.
Strengths of the truss system:
• High quality aluminum tubes with 50mm diameter
• Easy installation
• Low weight
• Space-saving transport
• For exhibition booth construction and event technology
Išankstinis užsakymas
Specifications:
• Main Tube: 50 x 4 mm
• Braces: 25 x 3mm
• Alloy: EN-AW 6082 T6 (AlMgSi1)
• Manufactured according DIN 4112, DIN 4113-1
• Coupling System: Concial connector with bolt and locking pin

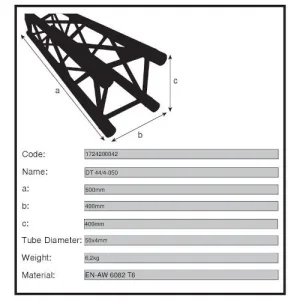

Dimension and weight:
• Lenght: 500 mm (without connector)
• Width: 400 mm
• Height: 400 mm
• Weight: 7 kg

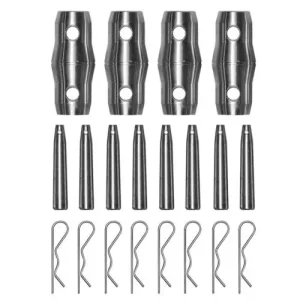

Delivery including connector set, consisting of: 4 conical connectors, 8 bolts and 8 locking pins.
| Svoris | 7.0 kg |
|---|
