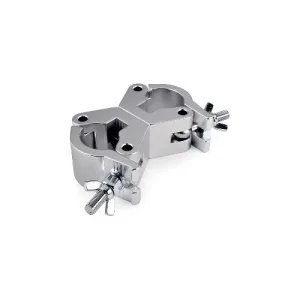

Swivel Coupler Heavy max. Load 750 kg MKII (48 – 51 mm), Silver
€39.64
2 žmonių šiuo metu žiūri šį produktą
For 48 – 51 mm pipe diameter
360° turnable
TUV approved (certificate can be sent on request)
Resilient up to 750 kg (tensile load)
Clamp width: 51 mm
Maximum shearing load: 100 kg
Material: Aluminum 6061 T6
Linked with bolt
Lock screw M12 zinc coated with retaining ring, grommet and wing nut
Outer dimensions: 113 x 51 x 162 mm (length x width x height)
Weight: 1,33 kg
Išankstinis užsakymas
Populiarios Prekės
Specifications
General
Product type
Truss Accessories
Suitable for tube diameter
48 – 51 mm
Tensile load
750 kg
Shear load max.
100 kg
Color
silver
Material
Aluminium
Clamp width
51 mm
Length
113 mm
Width
51 mm
Height
162 mm
Certification
TÜV-certified
Weight
1,33 kg
| Svoris | 1.33 kg |
|---|
