For 48 - 51 mm pipe diameter
360° turnable
TUV approved (certificate can be sent on request)
Resilient up to 750 kg (tensile load)
Clamp width: 30 mm
Maximum shearing load: 100 kg
Material: Aluminum 6061 T6, black
Linked with bolt
Lock screw M12 zinc coated with retaining ring, grommet and wing nut
Outer dimensions: 113 x 30 x 162 mm (length x width x height)
Weight: 0,89 kg

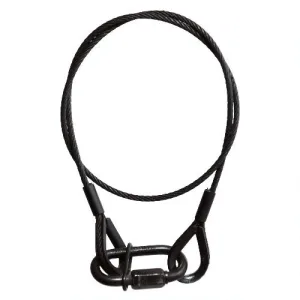

Steel rope, 6 x 19 + SE
Thimble eye at each end
One end with captive quick link (QL), black zinc-plated, 90 x 8 mm
Up to 45 kg device weight with dual strand securing method
TUV approved (certificate can be sent on request)
Incl. device screw M12 black, retaining ring, grommet and wing nut
Lock screw M8 zinc coated with grommet and wing nut
6 x 19 + fibre...

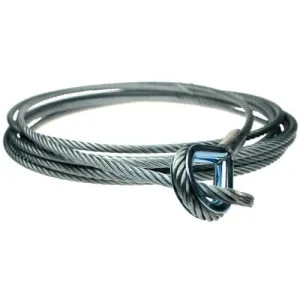

Wire cable suitable for cable holders of types DSH 50S (5 mm) 80VS (8 mm). The cut end of the cable is tin-plated to ensure cable durability when used with the cable holder, guaranteeing complete suitability for practical applications (see illustration). For this reason, all suspension cables for DSH wire cable holders are provided with tin plating at one end and a eyelet at the other. Certified in accordance with BGV C1.
6 x 19 + fibre...
