DT 34/3 – 100cm

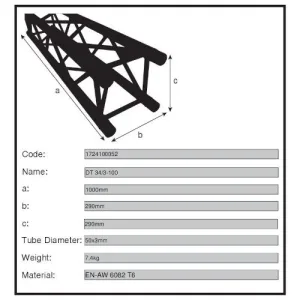

The DT34/3 System is a 4-point truss system that is connected with conical connectors, bolts and locking pins. This quick connector system closes force-lockingly with the belt tube and allows rapid construction during frequent assembly and dismantling. The main tubes are made of 50mm aluminum tube with a wall thickness of 3mm and give this system an outstanding strength-to-weight ratio. The struts have a diameter of 20 mm with a wall thickness of 2mm. Each truss piece includes all necessary conical connectors, steel pins and safety clips.

The system can be extended with various lengths, corners, T-branches and angles. Extensive accessories such as hooks, connectors, floor plates, wall brackets, spacers and much more complete the product line.

The system is from European production which is compatible to the most common systems in the market and is TÜV approved.

Strengths of the truss system:
• High quality aluminum tubes with 50mm diameter
• Easy installation
• Low weight
• Space-saving transport
• For exhibition booth construction and event technology
